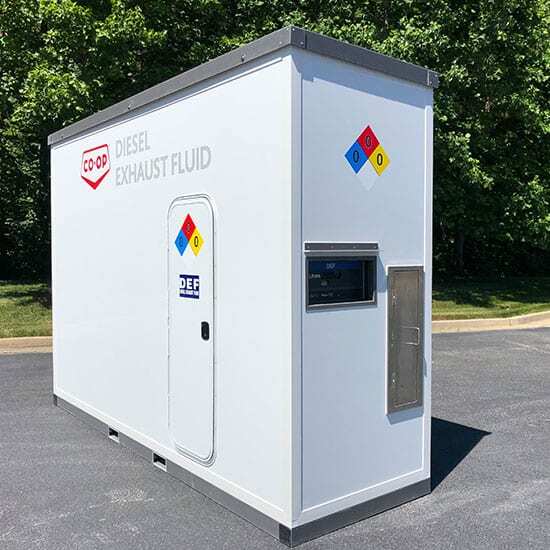

3rd Party Dispenser Platinum

• Pre-wired electrical components certified to UL-508 & CSA C22.2 standards
• Submersible DEF pump (1/2 HP)
• 3rd Party Warm Weather Dispenser, Factory Integrated
• Built-in SS dispenser interface w/external hose assembly
• Inventory level display
• HDPE primary tank with manway
• Insulated FRP panels
• Aesthetically pleasing, smooth, glossy white exterior finish
• Conforms to ISO 22241-3,4 standards
• Fixed, removable roof
• Stainless steel piping
• 2” Fill-port dry break adapter
• Leak-proof press fittings & BSPP connections
• Atmospheric vent w/protective screen
• Forklift compatible base frame

• Capacity (Gallons) - 500 / 750 / 1000 / 1320 / 2000
• Weight (lbs) - 2000 / 2200 / 2500 / 2800 / 3500
• Dimensions (WxDxH) - 44x132x89 inches / 46x140x99 inches / 46x150x110 inches / 46x179x110 inches / 74x214x96 inches

• Thermostatically controlled heater
• Exhaust Fan
• Heated Hose
• Low Level Warning Light
• Control Room Light
• Bolt-Down Anchoring Kit
• Undercarriage Insulation
• And much more!

Files For Download (Mechanical Drawings)

Third Party Wm Narrow End Dispense

Third Party Wm Narrow Left Dispense

Third Party Wm Narrow Right Dispense

Third Party Wm Wide Side Dispense
